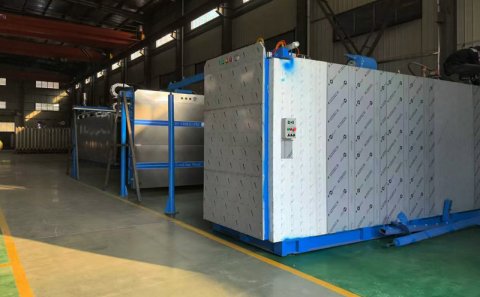

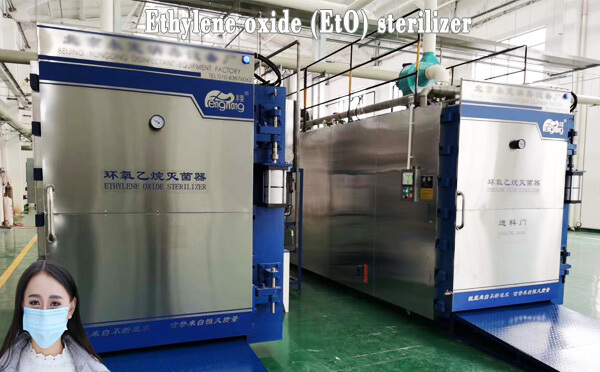

6 cubic meters ethylene oxide sterilizer
A sterilizer with a capacity of 6 cubic meters is a relatively small sterilizer that can usually hold 2 pallets.
1. The workshop of sterilizer with a capacity of 6 cubic meters
The ethylene oxide sterilizer can be installed in the non dust-free workshop. How large area and workshop height should be reserved for the 6 cubic sterilizer?
The height of the workshop shall not be less than 3m, with a reserved area of 80m2 and 8m * 10m.
2. The size and weight of a six cubic meters sterilizer?
Can the general forklift be loaded and unloaded, or do you need a crane?
Dimensions of 6 cubic ethylene oxide sterilizer. Internal Size(L*W*H):2700*1350*1700. Outer size(L*W*H):3120*3220*2270. Shipment size(L*W*H):3120*1710*2270.
The 6 cubic sterilizer weighs 5-7 tons, and the 10 ton forklift can be loaded and unloaded.
3. Types and quantities of EtO sterilizer doors.

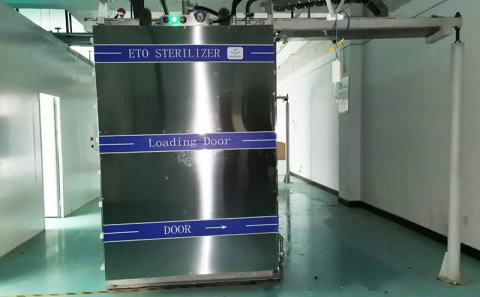

Types of doors: sliding doors, revolving doors, and lifting doors.
-
The sliding door has the lowest cost and occupies the largest area of the sterilization workshop.
-
The cost of revolving doors is relatively high. Many customers prefer revolving doors.
-
The lifting doors save space, but have the highest cost. If the sterilization workshop has a tight area and a high internal height, a lifting door can be used.
Then determine the number of doors, whether it is one or two.

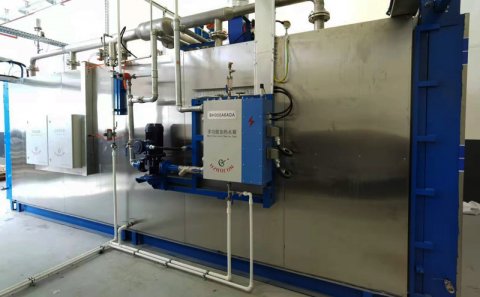

4. Material of sterilizer water jacket.
Material: Carbon steel, 201 stainless steel, 304 stainless steel.
The price of 201SS is about 1.5 times that of carbon steel.
Carbon steel water jacket Service life: more than 20 years.
201SS jacket Service life: more than 30 years.
304SS is suitable for sterilizers with higher requirements, and its price is twice that of carbon steel.
5. Aeration room of 6 cubic ethylene oxide sterilizer.
Most of the medical masks and medical equipment factories use sterilizer internal analysis or analytical room analysis?
Most of the medical instrument factories use analytical room. The supporting equipment also includes tail gas treatment equipment.
6. Installation cost of equipment
Installation costs: the customer pays for visas, air tickets, food and hotel costs, each engineer $100 per day.
7. Delivery date of sterilizer
Product delivery time: within 40 workdays after receiving the deposit, the equipment can be delivered.
8. The workshop layout design drawings
After placing the order, the Seller shall provide free workshop layout design and three-dimensional design.
From the analysis made above, we can understand the configuration of sterilizer machines with a capacity of 6 cubic meters and quickly carry out the progress of sterilizer projects step by step.
By the way，we(Bocon) provide a turnkey project plan for sterilizer equipment. Our customers cover more than 30 countries and regions, such as Türkiye, Saudi Arabia, America, Mexico, Brazil, Argentina, Malaysia, South Korea, Indonesia, Vietnam, India, Cambodia, Pakistan, South Africa, Egypt, Nigeria, Algeria, ARMENIA, etc
Finally, any questions regarding the sterilizer equipment project, customers are welcome to consult and negotiate with us.
